Model A Shop Drawings (22 page set)
Model A Shop Drawings (22 page set)
Regular price
$28.00 USD
Regular price
Sale price
$28.00 USD
Unit price
/
per

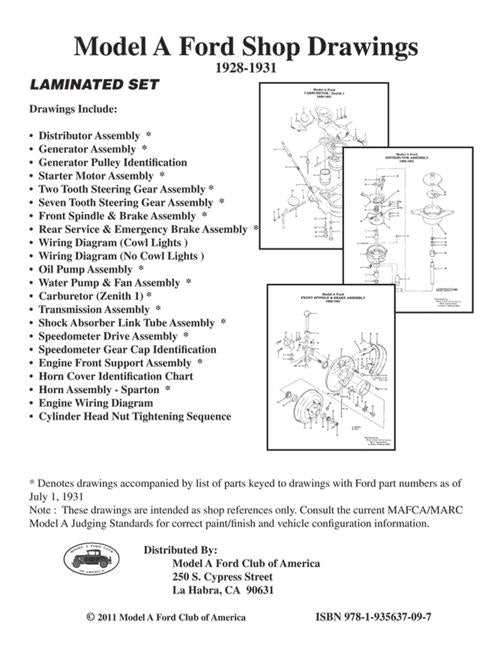

The talented technical artist Howard Barnes has created for us a 22-page set of detailed, exploded view drawings of many key Model A components, such as the differential, the steering box, the distributor, the generator, the horn. The list goes on and on. Each 8-1/2 x 11 laminated card has drawings and/or detailed part lists (using original Ford part numbers) on both sides. You will find these drawings provide a helpful visual guide to use when repairing or assembling major component of your Model A. They are ideal for shop use with their easy-to-clean laminated surfaces. Order a set for you and a Model A Friend!
